Pumps

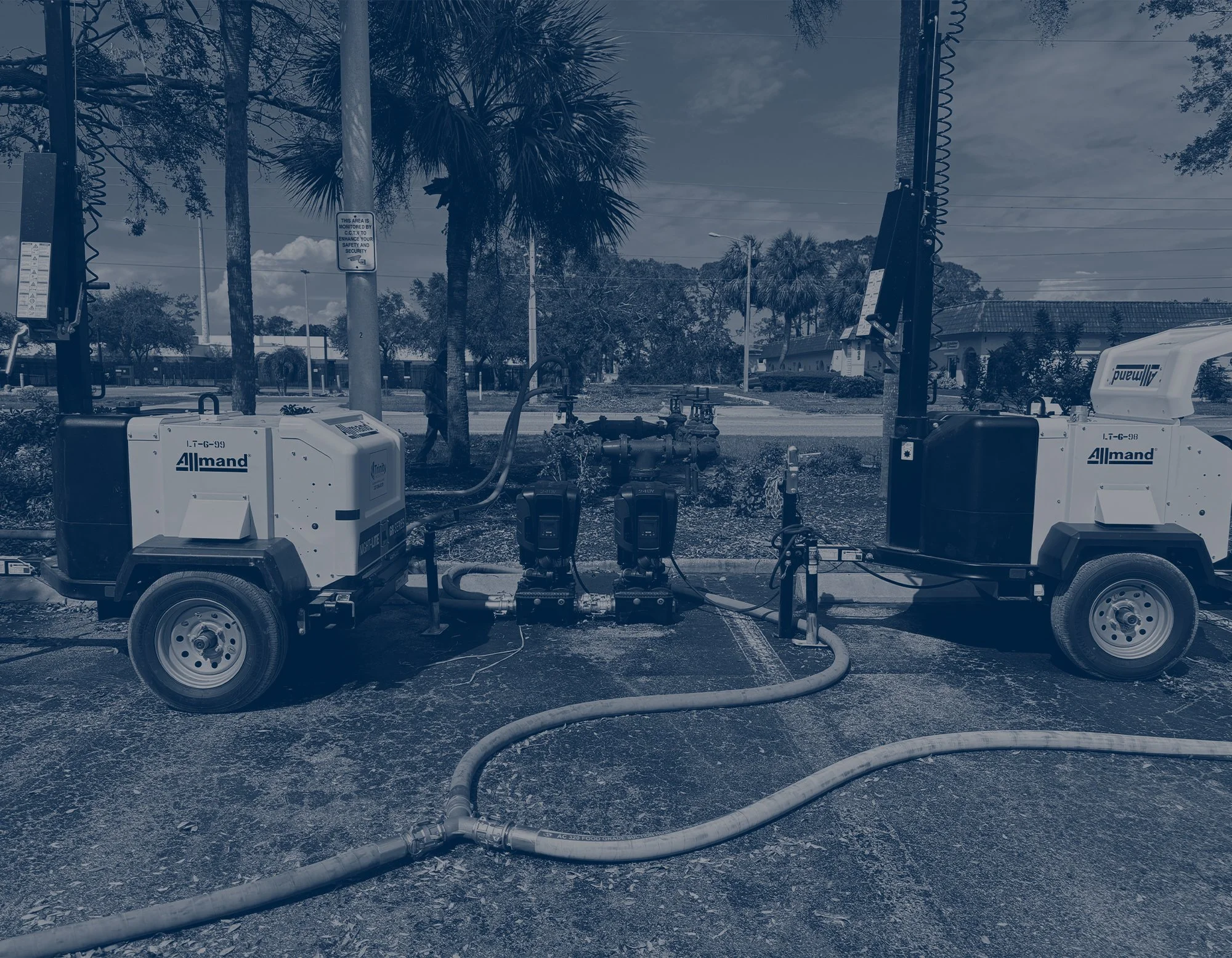

NSF-61 Certified Pump Unit
- Built in pressure system allows water to be supplied on demand
- Pressure can be adjusted to meet facility requirements
- Technology tracks water usage by the day, hour, and minute
- Job Report captures data on water usage and can be supplied as a point of reference
- Food Grade NSF-61 Certified
- Includes hoses and fittings in various sizes all which meet NSF-61 requirements
| Pump | ||
|---|---|---|
|
Size |
2.5YH |
|
|
Type |
NSF-61 |
|
|
Synch Speed |
3600 rpm |
|
|
Curve |
25YH36
|
|
|
Speed |
3525 rpm |
|
|
Dia |
9.25 in |
|
|
Ns |
1131 |
|
|
Nss |
- |
|
|
Suction |
4 in |
|
|
Discharge |
2.5 in |
|
|
Pump Limits |
||
|
Temperature |
250 degree F
|
|
|
Pressure |
175 psi g
|
|
|
Sphere Size |
0.5 in |
|
|
Power |
- |
|
|
Eye Area |
- |
|
|
Search Criteria
|
||
|
Flow |
500 US gpm |
|
|
Near Miss |
5% of Head |
|
|
Head |
323 ft
|
|
|
Fluid |
||
|
SG |
1 |
|
|
Viscosity |
0.9946 cP |
|
|
NPSHa |
- |
|
|
Temperature |
68 degree F |
|
|
Vapor Pressure |
0.3391 psi a |
|
|
Atm Pressure |
14.7 psi a |
|
|
Motor |
||
|
Standard |
NEMA |
|
|
Enclosure |
TEFC |
|
|
Sizing Criteria |
Max Power on Design Curve |
|
|
Size |
75 hp |
|
|
Speed |
3600 rpm |
|
|
Frame |
365 TS
|
|
| Performance Evaluation | |||||
|---|---|---|---|---|---|
|
Flow (US gpm) |
Speed (rpm) |
Head (ft) |
Efficiency (%) |
Power (hp) |
NPSHr (ft) |
|
600 |
3525 |
307 |
79 |
59.1 |
14.1 |
|
500 |
3525 |
329 |
76 |
54.7 |
10.9 |
|
400 |
3525 |
346 |
71 |
49.3 |
8.39 |
|
300 |
3525 |
358 |
63 |
42.4 |
7.35 |
|
200 |
3525 |
363 |
55 |
35.3 |
7 |
